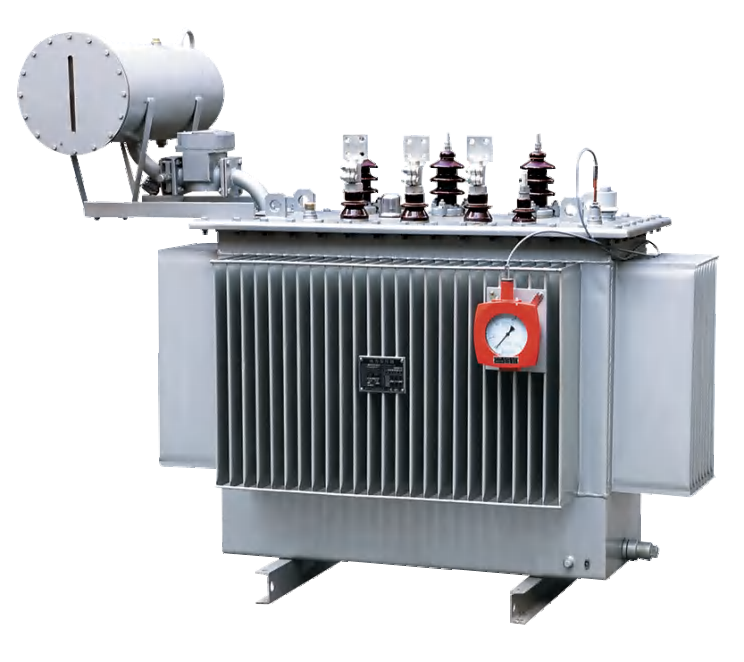

S9 Series Distribution Transformer

S9 Series Distribution Transformer

1.Application

This kind of product feature has high efficiency and low consumption.It can save a lot of power consumption and operating costs
The new S9 Series transformer is impoldered on the basis of the 10kV Distribution transformer.It accords with the GB1094-96,GB/
T6451-99,IEC76 standard.

2.Technical Specification

Rated
Capacity
(kVA)		 Voltage Schedule Connecting
Group		 Consumption(W) No-load
current
(%)		 Short
circuit
imped-
ance(%)		 Weight(kg) Outline dimension
(mm±10%)		 Gauging
Distance
HV Tapping LV NO-load
(kW)		 oad
(kW		 Body oil Total Length Width Height
10 6
6.3

10
10.5
11		 ±5%

(±2×2.5%)		 0.4
 Yyn0,
Dyn11		 65 330 3.5 4









4.5



5		 90 35 150 760 400 950 350×350
20 105 480 3.0 135 60 225 885 400 955 350×350
30 130 600 2.1 180 70 285 985 380 1015 400×400
50 170 870 2.0 230 75 350 985 510 1035 400×450
63 200 1040 1.9 285 90 430 1060 465 1135 400×450
80 250 1250 1.8 295 95 475 1010 775 1070 400×450
100 290 1500 1.6 330 100 520 1010 740 1095 400×450
125 340 1800 1.5 380 110 600 1040 770 1135 400×550
160 400 2200 1.4 440 120 685 1235 735 1165 550 ×550
200 480 2600 1.6 515 135 800 1280 765 1210 550×550
250 560 3050 1.2 610 160 940 1345 800 1315 550 ×550
315 670 3650 1.1 715 180 1105 1395 850 1375 660×660
400 800 4300 1.0 880 205 1310 1435 820 1460 660×660
500 960 5150 1.0 1005 230 1515 1525 965 1450 660×660
630 1200 6200 0.9 1155 265 1770 1615 1080 1615 660×660
800 1400 7500 0.8 1420 315 2160 1700 1120 1705 820×820
1000 1700 10300 0.7 1580 425 2520 1750 1140 1880 820×820
1250 1950 12000 0.6 1940 495 3040 1850 1245 1835 820×820
1600 2400 14500 0.6 2355 560 3800 1865 1285 2020 820×820
2000 2600 17000 0.5 3165 755 4950 2300 1165 2305 1070×1070
2500 3000 20700 0.5 3880 1300 6580 2440 1315 2490 1070×1070
