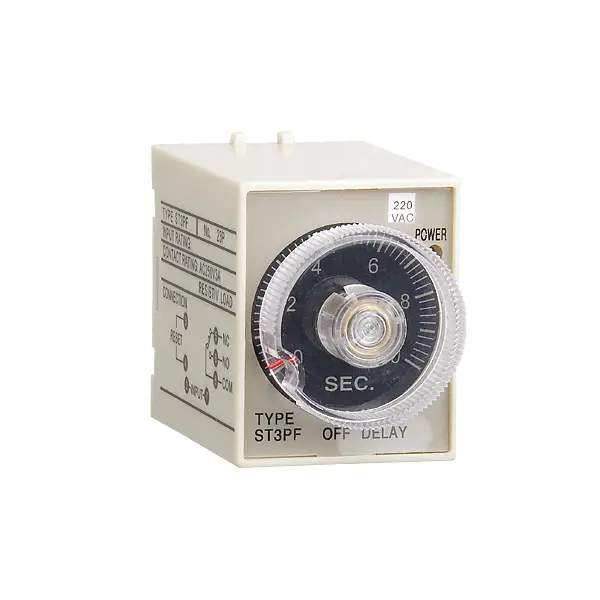

Timer Relay ST3P
| Classification | Timer Relay | |||
| Specification/ Model | ST3PF | ST3PK | ST3PY | ST3PR |
| Dimension | 55H × 40.5W × 57.5D | 55H × 40.5W × 57.5D | 55H × 40.5W × 57.5D | 55H × 40.5W × 57.5D |
| Function | Off delay | Breaking delay | Delaying of star-delta starter | On-off delaying repetitive |
| Delaying Accuracy | 1% | 1% | 0.5%±10ms | 1% |
| Contact Amount | Timed 1 Spdt | Timed 1 Spdt | Timed star-delta transfer Inst.1 normally open | Timed 1 Spdt |
| Contact Capacity | AC220V 3A | AC220V 3A | AC220V 3A | AC220V 2A |
| Delaying Range | 0.1~1s 0.2~2s 0.5~5s 1~10s 2.5~30s 5~60s | 0.1~1s 0.25~2s 0.5~5s 1~10s 2.5~30s 5~60s 15~180s | 1~10s 2.5~30s 5~60s | 0.5~6s/60s 1~10s/10min 2.5~30s/30min |
| Rated Voltage | AC110, 220V DC24, 48, 110V | AC110, 220V DC24V | AC110, 220V | AC110, 220V DC24V |
