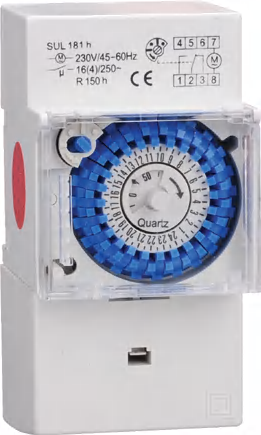

Timer Relay SUL181h

Classification		Timer	Timer	Timer	Timer
Specification/Model		TB-35	TB-38B	SUL181h	E8
Contact Capacity		AC220V 10A	AC220V 10A	AC220V 16A	AC220V 10A
Full Timing Range		24h	24h	24h	7m
Contact Resistance		≥50mΩ	≥50mΩ	≥50mΩ	≥50mΩ
Insulation Resistance		≤100MΩ	≤100MΩ	≤100MΩ	≤100MΩ
Coil Voltage		100~240V AC	100~240V AC	110,230V AC	110,230V AC
Life	Electrical	105 Times	105 Times	105 Times	105 Times
Life	Mechanical	107 Times	107 Times	107 Times	107 Times
Operating Temperature		-40oC~+55oC	-40oC~+55oC	-40oC~+55oC	-40oC~+55oC
Storage Battery (Working Reserve)		Without Battery	Time 150h	Time 150h	–
Minimum Setting Unit		15Minutes	15Minutes	30Minutes	0.5Minutes
Set Up Times		15 m/per times 96 times	15 m/per times 96 times	30 m/per times 48 times	1M,1.5M,2M,2.5M, 3M,3.5M,4.5M,5M, 5.5M,6M,6.5M,7M
