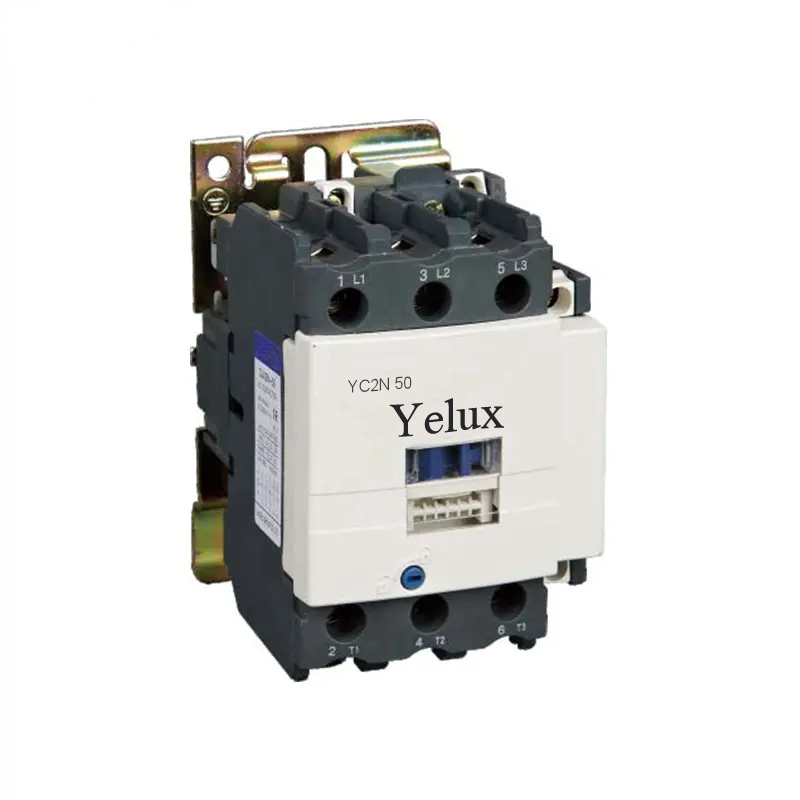

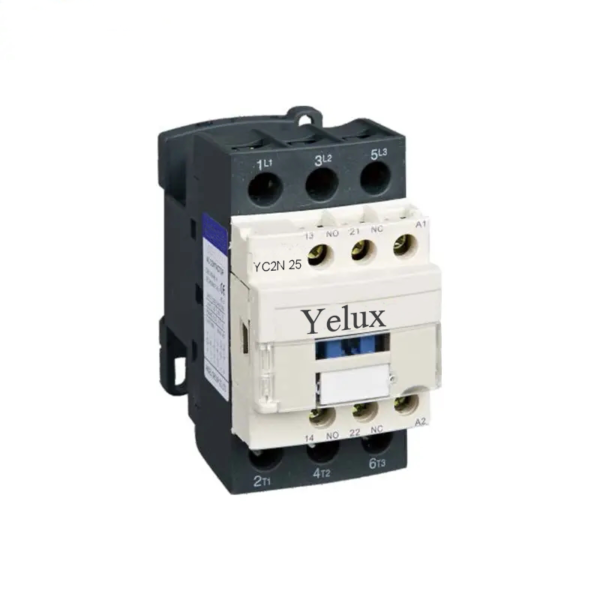

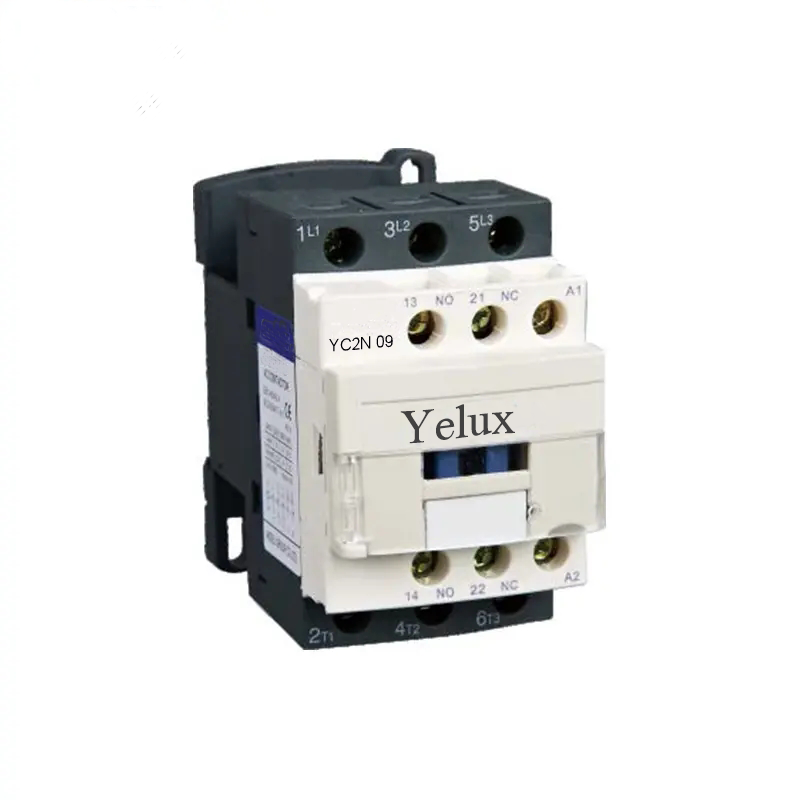

YC2N series AC contactor is suitable for frequency 50/60Hz,rated insulation voltage up to1000V,rated operation current 9~150A under AC-3 duty.It is mainly used for making/breakingelectric circuits at a long distance & for frequent starting/stopping & controlling AC Motors.It isused in combination with thermal relay to compose a magnetic motor starter. The products com-ply with IEC60947-4-1 standard.
| Model | YC2N-09, YC2N-115, YC2N-12, YC2N-150, YC2N-18, YC2N-25, YC2N-32, YC2N-38, YC2N-40, YC2N-50, YC2N-65, YC2N-80, YC2N-95 |
|---|---|
| Rated insulation voltage(Ui) | 690V (YC2N-09-38),1000V(YC2N-40-150) |
| Rated operating voltage(Ue) | 690V(YC2N-09-38),1000V(YC2N-40-150) |
| Standard Control Circuit Voltage | 50Hz:B5 24V,D5 42V,E5 48V,F5 110V,M5 220V,P5 30V,U5 240V,Q5 380V,V5 400V,N5 415V,R5 440V,S5 500V,Y5 660V |
