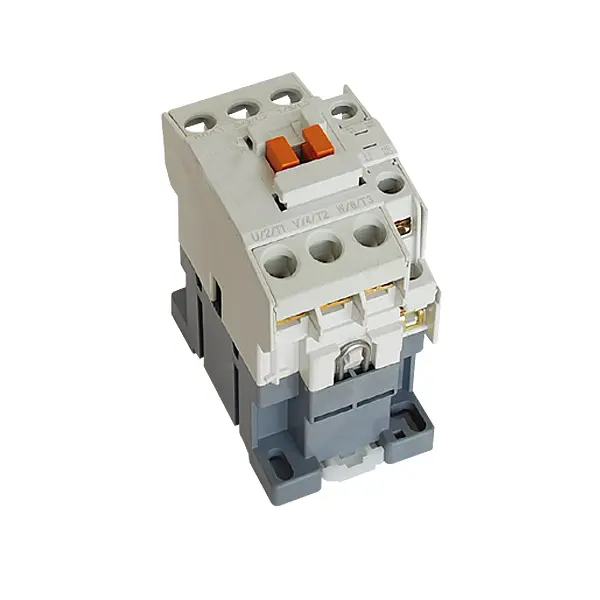

YC3 Series AC Contactor

YC3 Series AC Contactor
分类 ,

YC3 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to 85A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay & machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With YR3 thermal relay, it is combined into the electromagnetic starter. It conforms to IEC60947-1 standard.

其他信息

Model

YC3-9,YC3-12,YC3-18,YC3-22,YC3-32,YC3-40,YC3-50,YC3-65,YC3-75,YC3-85
AC3 duty

200-240V:2.5KW 11A,3.5KW 13A,4.5KW 18A,5.5KW 22A,7.5KW 32A,11KW 40A,15KW 55A,18.5KW 65A,22KW 75A,25KW 85A
380-440V:4KW 9A,5.5KW,12A,7.5KW 18A,11KW 22A,15KW 32A,18.5KW 40A,22KW 50A,30KW 65A,37KW 75A,45KW 85A
500-550V:4KW 7A,7.5KW 12A,7.5KW 13A,15KW 22A,18.5KW 28A,22KW 32A,30KW 43A,37KW 60A,45KW 64A,45KW 75A
690V:4KW 5A,7.5KW 9A,7.5KW 9A,15KW 18A,18.5KW 21A,22KW 25A,30KW 33A,37KW 47A,45KW 47A,45KW 52A
AC motor

Single phase 115V:0.5HP,0.5HP,1HP,2HP,2HP,3HP,3HP,5HP,5HP,7.5HP
Single phase 230V:1HP,2HP,3HP,3HP,5HP,5HP,7.5HP,10HP,15HP,15HP
Three phase 200V:2HP,3HP,5HP,7HP,7.5HP,10HP,10HP,15HP,20HP,25HP
Three phase 230V:3HP,3HP,5HP,7.5HP,10HP,10HP,15HP,20HP,25HP,30HP
Three phase 460V:2HP,7.5HP,10HP,10HP,20HP,25HP,30HP,30HP,40HP,50HP,50HP
Three phase 575V:5HP,10HP,15HP15HP,20HP,25HP,30HP,40HP,50HP,50HP
Auxiliary for AC Contactor YC3

AU-2-20: 2 NO 0 NC
AU-2-11: 1NO 1NC
AU-2-02: 0NO 2NC
AU-4-40: 4NO 0NC
AU-4-31: 3NO 1NC
AU-4-22: 2NO 2NC
AU-4-13: 1NO 3NC
AU-4-04: 0NO 4NC
