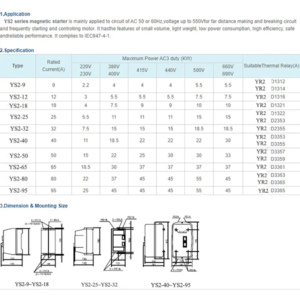

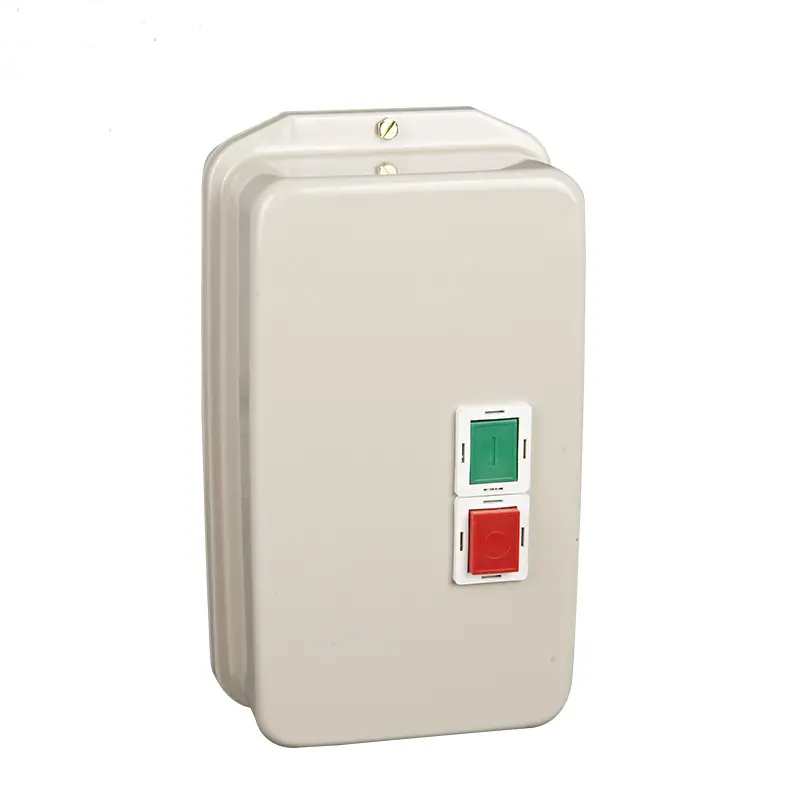

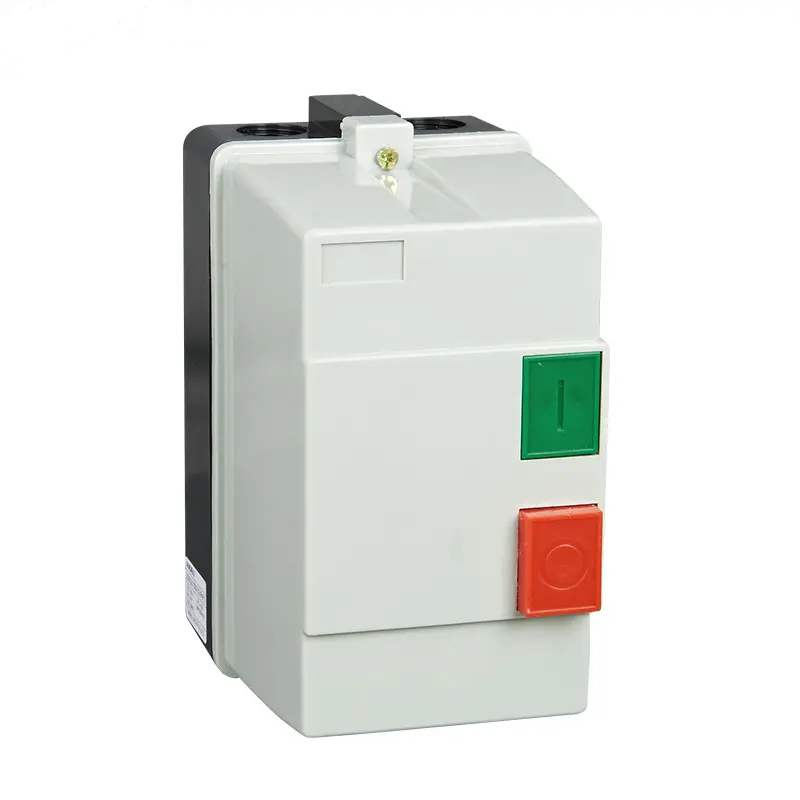

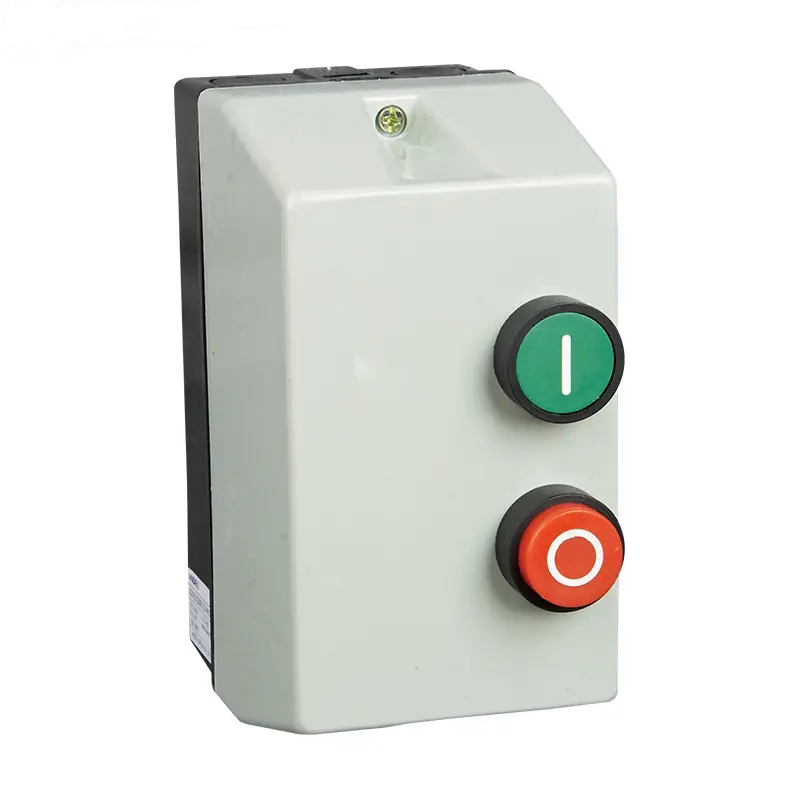

YS2 Series Magnetic Starter
YS2 series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550V for far distance making and breaking circuit and frequently starting and controlling motor.It has the features of small volume,light weight,low power consuption,high efficiency,safe and reliable performance.It complies to IEC947-4-1.
| Type | Rated current(A) | Maximun power AC 3 duty(kw) | Suitable thermal relay(A) | |||||
| 220/230V | 380/400V | 415V | 440V | 500V | 660/690V | |||
| YS2-9 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | YR2 D1312 YR2 D1314 |
| YS2-12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | YR2 D1316 |
| YS2-18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | YR2 D1321 |
| YS2-25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | YR2 D1322 YR2 D2353 |
| YS2-32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | YR2 D2355 |
| YS2-40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | YR2 D3353 YR2 D3355 |
| YS2-50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | YR2 D3357 YR2 D3359 |
| YS2-65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | YR2 D3361 |
| YS2-80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | YR2 D3363 YR2 D3365 |
| YS2-95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | YR2 D3365 |
